About CleanoSpector Handheld Metal Cleanliness Test Instrument

The SITA CleanoSpector is an easy-to-use handheld non-destructive metal cleanliness test instrument used for measuring organic contamination such as oil, grease, coolants, release agents and cleaning fluid on metal surfaces. The instrument is widely used in automotive, aerospace and medical device industries and allows users to evaluate cleanliness directly at the cleaning process station, on the production line, during field work, or in the laboratory.

The instrument has been specifically designed for measuring the cleanliness of manufactured metal parts to ensure surfaces are free of contaminants before the next manufacturing process e.g. assembly, sealing, bonding, painting, printing, lacquering, laser welding. etc. The test results are measured in RFU (relative fluorescence unit). The lower the RFU, the cleaner the part.

Applications

  • Non-contact and non-destructive cleanliness inspection of metal surfaces – at the push of button
  • Quality assurance of industrial cleaning processes
  • Layer thickness measurement e.g. thickness of applied corrosion protection or adhesive primer

How does it work?
The CleanoSpector detects contamination by emitting focused UV light onto the surface and measuring the fluorescence from any organic compounds; metal and ceramic surfaces do not fluoresce. The fluorescence intensity depends on the amount of contamination found on the surface at the measuring point, i.e. the higher the fluorescence the more contamination on the surface.

The CleanoSpector is readily and quickly calibrated by you using a reference calibration standard, which we provide. Evaluation of the cleanliness of part’s surface is achieved by comparing to the reference. The result is given in relative fluorescence units (RFU).

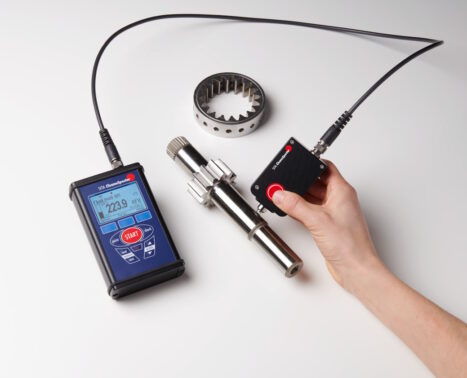

SITA CleanoSpector metal contamination testerAdvantages of using the CleanoSpector fluorescence method for measuring metal cleanliness

  • Non-contact, non-destructive test
  • Fast test at the push of a button, intuitive operation
  • Can detect contamination on parts with various geometries – flat, round, curved, in grooves
  • Works on metals, ceramics
  • Mobile and robust, used on the shopfloor and in the lab
  • Various spacers are available for easy measurement of different part shapes to ensure optimal focal length

Features & Benefits

SITA CleanoSpector metal contamination testingFeatures

  • Mobile and robust measuring instrument for flexible use at the process and in the laboratory
  • Intuitive operation: simple & fast measurement
  • Automatic calibration on reference surface

Benefits

  • Highest product quality by monitoring cleanliness at critical process points
  • Documentation of slightest contamination on various shaped surfaces
  • Process optimisation for productivity

Applications

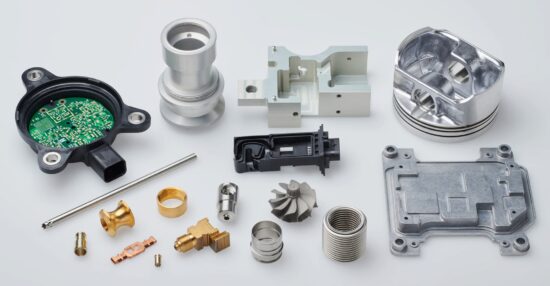

SITA CleanoSpector metal contamination measurement

Application examples for metal cleanliness inspection

  • Cleanliness inspection of metal parts after machining
  • Inspection of functional surfaces after selective cleaning (e.g. laser cleaning, ultra-fine plasma cleaning, CO2 snow blasting)
  • Monitoring the cleanliness of metal parts before laser welding
  • Automotive crank shafts, pistons, cam shafts and con-rods after cleaning
  • Pistons for hydraulic pumps before hardening – residual contamination has an influence on the steel quality in the hardening furnace
  • Stainless steel pipes before coating (e.g. in vehicle construction)
  • Detecting residual agents and encapsulation material on bond pads before wire bonding in electronics
  • Flux residues on gold bond pads on ceramic pcb substrates
  • Surface inspection on electrical contacts after stripping of insulation material
  • Gear case parts before coating or bonding
  • Medical device instruments and implants before delivering to the user
  • Cleanliness of parts before vacuum or powder coating
  • Controlling layer thickness of anti-corrosive agents, oils, waxes or bonding agents
  • Cleanliness inspection of sealing groove in aluminium die cast housings for engine control units (ECU), automated driving control unit, power electronics for e-mobility, & pumps
  • Inspection for filmic contamination on parts in medical or vacuum technology
  • Inspection for sufficient layer thickness when applying corrosion protection oils or when applying a primer prior to adhesive bonding

Specifications

Cleanliness
Measuring range 0–100%
Resolution 0.1%
Fluorescence intensity
Measuring range 0–2,000 RFU (Relative Fluorescence Unit)
Max. deviation 0.5% of measuring range
Resolution 0.1 RFU
Excitation* 365nm, max. 150mW
Detection* 460nm
Measuring point* D=1mm
Measuring distance* 4.7mm
* standard values
Layer Thickness
Measuring range User-defined
Power Supply
Mains adapter/USB 100 to 240V
Li-Ion battery 3.6V / 1,950mAh min 8h operating time
Power consumption 2.5W max.
Interface, Memory, Dimension & Weight
USB-interface data transfer
Display LCD, illuminated
Available measuring profiles 254
Memory 8,000 measuring values/profile
Dimensions (L x W x H)
Hand-held device 129 x 82 x 48mm
Sensor head 95 x 50 x 30mm
Weight (device) 530g

Software

SITA-ProcessLog
SITA ProcessLog softwareSITA-ProcessLog is a Windows software option which provides computer control of your CleanoSpector and the recording and management of your cleanliness measurement data.

Functions

  • Guided part inspection and graphical display of measuring points on part surfaces
  • Documentation and evaluation of the part cleanliness
  • Administration and analysis of saved measured values
  • Quick and easy preparation of test reports
  • Controlling the instrument operation via PC
  • Simple generation and administration of measurement profiles

Other Information

Accessories
CleanoSpector accessoriesThe CleanoSpector is delivered with the accessories you need to get you started.

  • Spacers – to fix and maintain the right measuring distance, we have an extensive range of spacers, including for flat surfaces, curved surfaces, and small areas.
  • Calibration standards – for calibration and verification of the CleanoSpector
  • Precision stand and holder
  • V-Block – stainless steel block with v-sections to hold test parts with different shapes particularly shafts, wires, bars, etc
  • Cleaning kit



See how the SITA CleanoSpector works as part of a real application in this case study:

Case Study - SITA CleanoSpector for Ilmor Engineering Peace of mind for meeting component cleanliness standards in race car engine manufacturing

Ilmor Engineering Ltd, a leading F1 and Indy car race engine manufacturer, enhanced their cleaning processes with the CleanoSpector surface cleanliness measurement instrument supplied by Dyne Testing Ltd. The CleanoSpector ensures thorough cleanliness of engine components, helping Ilmor maintain their high quality standards and avoid potential failures during assembly.

All Downloads

Filename Size Download
SITA CleanoSpector Accessories Brochure 0.27MB Download
SITA CleanoSpector Product Brochure 0.43MB Download
SITA CleanoSpector - Measuring Principle 0.31MB Download

Ordering Information

Part Number Description
SITG80-000010 SITA CleanoSpector Cleanliness Measuring Instrument
Included: CleanoSpector, stand, mains adapter, two spacers, USB cable, calibration standard N0 (no fluorescence), operating instructions, calibration certificate – all in a convenient storage case
Accessories
SITG02-000005 SITA ProcessLog software for Windows 10/11 (USB)
SITG02-000015 SITA Fluo-Scan for Windows 10/11 (USB/download)
SITG02-000007 SITA upgrade software SITA-online from V2.0/V2.1 to V3.1
SITG01-000049 SITA calibration standard N1 for verification of CleanoSpector
SITG01-000039 SITA cleaning kit for lens cleaning, Cleano and ConSpector
SITF21-000055 SITA magnetic holder for fine adjustment of CleanoSpector
SITF10-000439 SITA magnetic holder with adapter for measurement stands
SITF10-001186 SITA CleanoSpector spacer type 2, tripod (stainless steel)
SITF10-000429 SITA CleanoSpector spacer type 3, bipod for perpendicular positioning
SITF10-000430 SITA CleanoSpector spacer type 4, large for stable positioning on even surfaces, 24mm dia
SITF10-000431 SITA CleanoSpector spacer type 5, pipes, 18mm dia
SITF10-000432 SITA CleanoSpector spacer type 6, pipes, 21mm dia
SITF10-000433 SITA CleanoSpector spacer type 7, cone for teaching in the measuring distance
SITF10-000434 SITA CleanoSpector spacer type 8, open cone for perpendicular positioning
SITF10-000435 SITA CleanoSpector spacer type 9, standard shape, plastics
SITF10-000436 SITA CleanoSpector spacer type 10, standard shape, stainless steel
SITF21-000102 SITA CleanoSpector spacer type 11, centering for straight, round & square rods & pipes
SITF21-000119 SITA CleanoSpector spacer type 15, for edges with adjustable pins
SITF10-001191 SITA CleanoSpector spacer type 16, open cone (POM) for perpendicular positioning
SITF10-000438 SITA CleanoSpector spacer type shielding – for contactless measurements in high ambient light
SITF10-000437 SITA CleanoSpector spacer type V-Block for part placement, stainless steel
